360 Degree EO/IR Drone Detection And Tracking Platform With Dual Channel Imaging And Motion Control

Brand Name : Polaris

Model Number : Hobit NT9501

Certification : CE,ISO9002

Place of Origin : Shenzhen,China

MOQ : 1

Price : 31999-45999 USD

Payment Terms : T/T, Paypal , Etc.

Supply Ability : 50 Pcs/month

Delivery Time : In 7 -14 works day

Packaging Details : Durable case or box

Average power : 40W

Focused mode : Automatic/Manual

Weight : ≤ 8 Kg

Size : 352 mm × 245 mm × 275 mm

Network Protocol : IPv4, TCP/IP, UDP, etc.

Protection Level : IP66

Contact Now

360 ° EO/IR Drone Detection and Tracking Platform with Advanced Dual Channel Imaging and Motion Control



Introduction



The EO/IR Tracking System is an advanced dual-channel imaging solution combining visible and thermal sensors with synchronized video encoding. Designed for high-precision target recognition, it offers intelligent zoom, autofocus, optical fog penetration, and servo tracking in a compact form. With integrated edge computing, it enables real-time UAV detection, identification, and tracking while supporting zoomed-in close-ups and snapshot capture.



Parameters



Category  Key Specifications
Light Graph Imaging  Resolution: 1920×1080 @25fps
 Focal Length: F6.5–312mm
 Modes: Color, Optical Fog
 Performance: Detection ≥3KM, Tracking ≥2.5KM, Recognition ≥2KM
Infrared Imaging  Detector: Uncooled
 Resolution: 640×512
 Focal Length: Fixed 75mm
 Modes: Hot Black/Hot White
 Performance: Detection ≥1.2KM, Tracking ≥1KM, Recognition ≥0.8KM
Motion Control  Horizontal: 0°–360° (0.1°–80°/s)
 Vertical: –90° to +90° (0.1°–60°/s)
 Stop Precision: ±0.02°
Video & Network  Video Compression: H.264/MJPEG
 Protocols: ONVIF, RTSP, IPv4, TCP/IP, UDP
 Features: Remote Upgrade, Virtual Dual IP Address



Features



Feature Description
Imaging  Dual-channel visible and thermal imaging
Integrated Design  Auto zoom, focus, fog penetration, tracking
Edge Computing  UAV detection, identification, tracking
Linkage Function  Zoom, close-up, snapshot
Rotation Range  360° horizontal, -90° to +90° vertical
Display  Azimuth, pitch, zoom, radar range
Power  ≤50W power
Accessibility  Radar guidance, software management
Target Detection  Tracks low and slow targets within 1-2KM

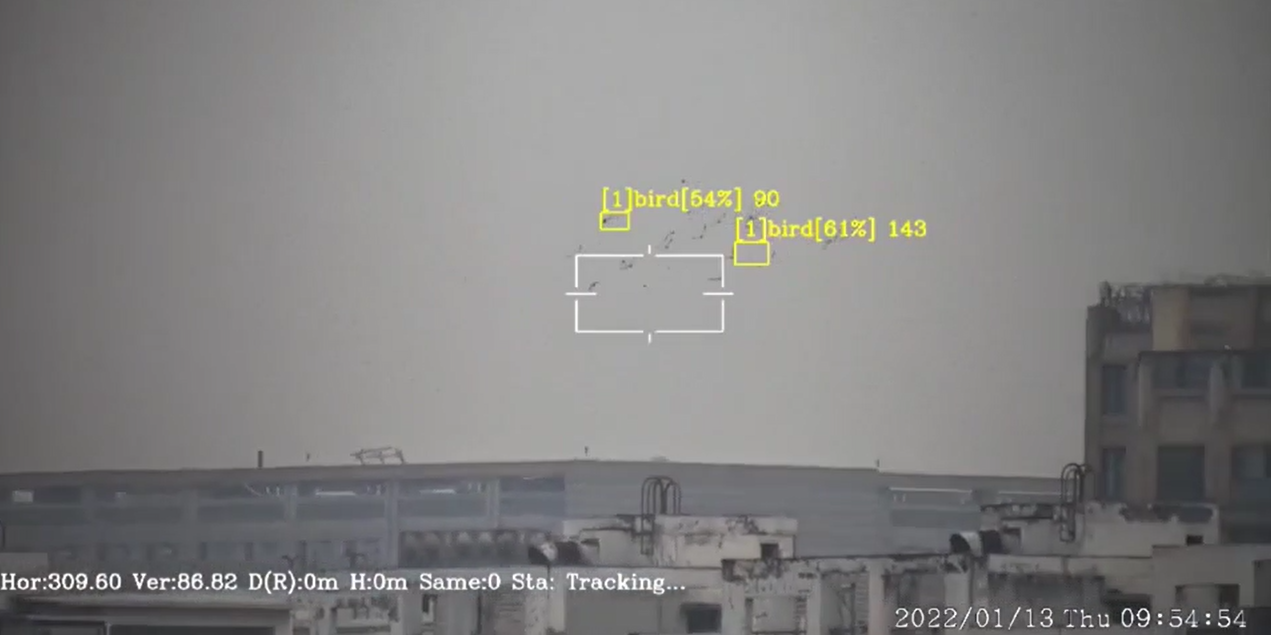

Detail Pictures



360 Degree EO/IR Drone Detection And Tracking Platform With Dual Channel Imaging And Motion Control



360 Degree EO/IR Drone Detection And Tracking Platform With Dual Channel Imaging And Motion Control
